Configure Dashboard Reaction

Serve a real-time web dashboard with charts, tables, KPIs, and more

  8 minute read

The Dashboard Reaction Reaction A component that receives query result changes and takes action on them. Learn more serves an interactive web dashboard that visualizes query result changes Result Change Event A notification from a Continuous Query describing changes to its result set. Learn more in real time. It provides drag-and-drop layout, multiple widget types (charts, tables, KPIs, gauges, maps), and persists dashboard configurations via the state store.

Basic Configuration

reactions:
  - kind: dashboard
    id: my-dashboard
    queries: [sensor-query, alerts-query]
    port: 3000

This starts a dashboard web UI at http://localhost:3000 that subscribes to the listed queries and displays real-time updates.

User-Designed Dashboards

The dashboard reaction includes a full web-based designer that lets users create and customize dashboards interactively — no configuration file changes required. Once the reaction is running, open the dashboard URL in a browser to start building.

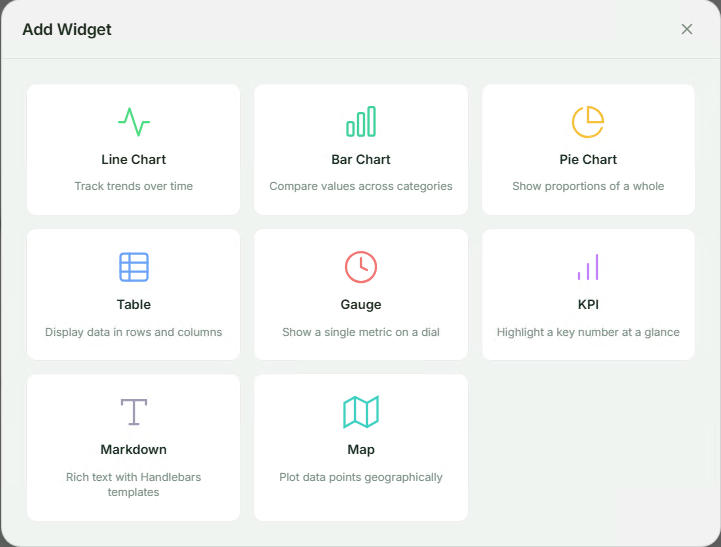

Users can add widgets by clicking the Add Widget button and choosing from the available widget types:

Add Widget dialog

Each widget is configured through an intuitive form where you select the query, fields, and display options. Widgets can be repositioned and resized via drag-and-drop on the grid layout.

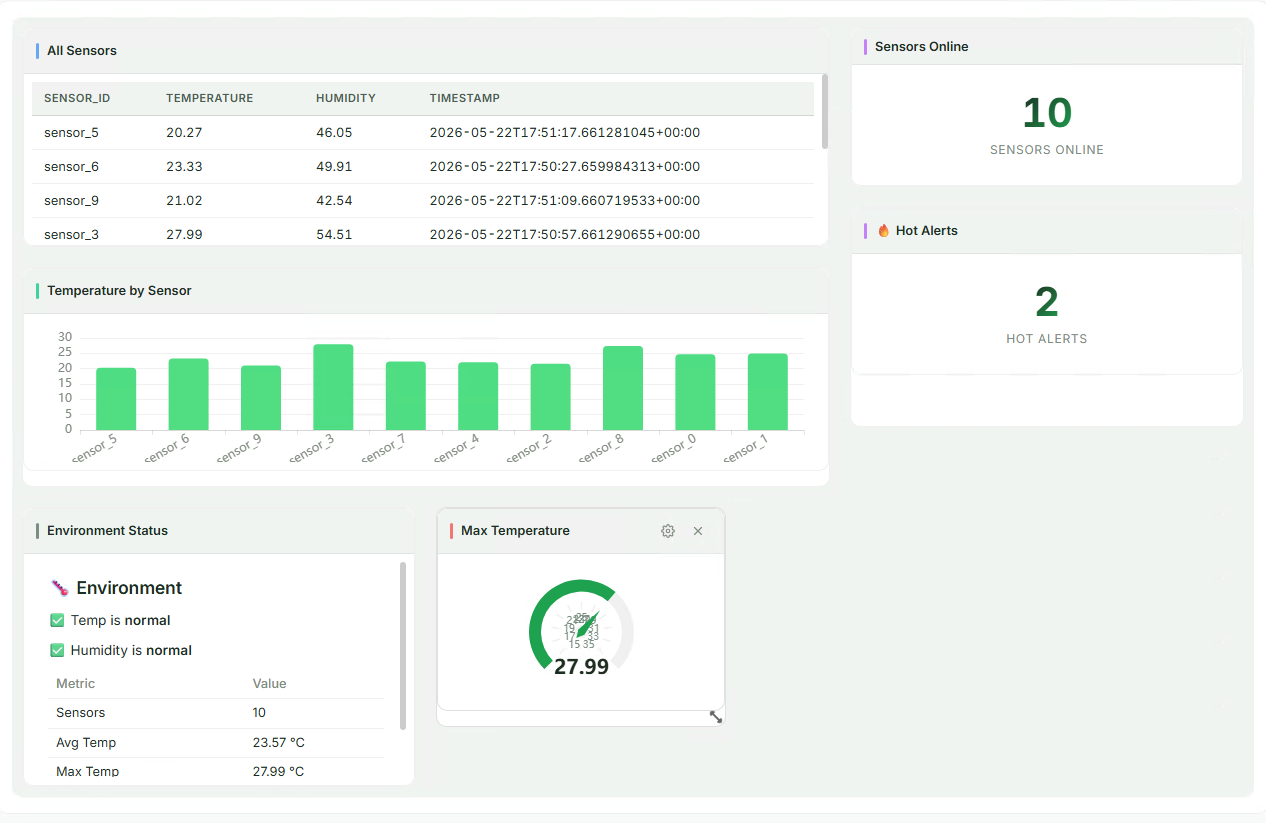

Here’s an example of a user-designed IoT monitoring dashboard with tables, charts, KPIs, gauges, and markdown widgets — all created through the web UI:

Dashboard example showing sensor data with tables, bar charts, KPIs, gauges, and markdown widgets

Dashboard designs are automatically persisted to the state store, so they survive server restarts. Multiple users can access the same dashboard simultaneously and see real-time updates as query results change.

Configuration Reference

Field Type Default Description
kind string Required Must be dashboard
id string Required Unique reaction identifier
queries array Required Query IDs to subscribe to
autoStart boolean true Start reaction automatically
host string 0.0.0.0 Bind address for the HTTP + WebSocket server
port integer 3000 Bind port
heartbeatIntervalMs integer 30000 WebSocket heartbeat interval in milliseconds
priorityQueueCapacity integer None Maximum pending change events in the priority queue; unbounded if not set
predefinedDashboards array [] Dashboards seeded on first startup (see below)

Predefined Dashboards

You can ship dashboards as part of your configuration. Predefined dashboards are seeded into the state store on first startup. If a dashboard with the same ID already exists (e.g. the user modified it via the UI), it is not overwritten.

reactions:
  - kind: dashboard
    id: my-dashboard
    queries: [sensor-query]
    port: 3000
    predefinedDashboards:
      - id: production-metrics
        title: "Production Metrics"
        grid:
          columns: 12
          rowHeight: 80
        widgets:
          - id: w-table
            widgetType: table
            title: "All Sensors"
            grid: { x: 0, y: 0, w: 8, h: 4 }
            config:
              queryId: sensor-query
              columns: [name, value, unit]
          - id: w-kpi
            widgetType: kpi
            title: "Sensor Count"
            grid: { x: 8, y: 0, w: 4, h: 2 }
            config:
              queryId: sensor-query
              valueField: name
              aggregation: count
              label: Sensors

Widget Types

Type widgetType Required Config Fields
Table table queryId, columns (array of field names)
Bar Chart bar_chart queryId, categoryField, valueFields (array)
Line Chart line_chart queryId, categoryField, valueFields (array)
Pie Chart pie_chart queryId, nameField, valueField
Gauge gauge queryId, valueField, min, max, aggregation
KPI kpi queryId, valueField, aggregation, label
Text (Markdown) text queryId, template (Handlebars + Markdown)
Map map queryId, latField, lngField, valueField

Widget Grid Placement

Each widget has a grid object controlling its position and size in the 12-column layout:

Field Type Description
x integer Column position (0-based)
y integer Row position (0-based)
w integer Width in columns (1–12)
h integer Height in row units

Aggregation Modes

The aggregation field (used by KPI and Gauge widgets) controls how multiple rows are reduced to a single display value:

Mode Description
last Last updated row (default)
first First row in the result set
sum Sum of all values in the field
avg Average of all values
min Minimum value
max Maximum value
count Number of rows
filter Single row matching filterField/filterValue

Markdown Widget Templates

The Markdown (text) widget uses Handlebars templates rendered as Markdown.

Available Template Variables

Variable Description
rows Array of all result rows
count Number of rows
latest Last updated row
aggregation Query-level aggregation value (if any)

Built-in Helpers

sum, avg, min, max, count, format (currency/percent/compact), eq, gt, lt, gte, lte.

Example Template

## {{count}} sensors online

{{#each rows}}
- **{{this.name}}**: {{this.value}} {{this.unit}}
{{/each}}

Average reading: {{format (avg "value") "compact"}}

HTTP API

The dashboard reaction exposes a REST API for managing dashboards:

Method Path Description
GET / Dashboard SPA (web UI)
GET /assets/* Static assets
GET /api/dashboards List all dashboards
POST /api/dashboards Create a new dashboard
GET /api/dashboards/:id Get dashboard by ID
PUT /api/dashboards/:id Update dashboard
DELETE /api/dashboards/:id Delete dashboard
GET /api/queries List subscribed queries
GET /api/queries/:id/snapshot Get current query snapshot
GET /ws WebSocket stream endpoint

WebSocket Protocol

The dashboard uses WebSocket for real-time updates. Connect to the /ws endpoint.

Subscribe to Queries

{ "type": "subscribe", "query_ids": ["sensor-query", "alerts-query"] }

Receive Query Results

{
  "type": "query_result",
  "query_id": "sensor-query",
  "timestamp": 1714500000000,
  "results": [
    { "op": "add", "data": { "name": "Sensor-1", "value": 42 } },
    { "op": "update", "before": { "name": "Sensor-1", "value": 42 }, "after": { "name": "Sensor-1", "value": 50 } },
    { "op": "delete", "data": { "name": "Sensor-1", "value": 50 } }
  ]
}

Heartbeat

{ "type": "heartbeat", "ts": 1714500000000 }

The server sends heartbeats at the configured heartbeatIntervalMs interval to keep connections alive.

Examples

Minimal Dashboard

reactions:
  - kind: dashboard
    id: simple-dash
    queries: [my-query]

IoT Monitoring Dashboard

reactions:
  - kind: dashboard
    id: iot-monitor
    queries: [sensor-readings, device-alerts]
    port: 3000
    heartbeatIntervalMs: 15000
    predefinedDashboards:
      - id: iot-overview
        title: "IoT Overview"
        grid:
          columns: 12
          rowHeight: 80
        widgets:
          - id: sensor-table
            widgetType: table
            title: "All Sensors"
            grid: { x: 0, y: 0, w: 12, h: 4 }
            config:
              queryId: sensor-readings
              columns: [id, name, temperature, humidity, last_seen]
          - id: temp-gauge
            widgetType: gauge
            title: "Avg Temperature"
            grid: { x: 0, y: 4, w: 4, h: 3 }
            config:
              queryId: sensor-readings
              valueField: temperature
              min: 0
              max: 100
              aggregation: avg
          - id: alert-count
            widgetType: kpi
            title: "Active Alerts"
            grid: { x: 4, y: 4, w: 4, h: 3 }
            config:
              queryId: device-alerts
              valueField: id
              aggregation: count
              label: "Alerts"
          - id: temp-chart
            widgetType: line_chart
            title: "Temperature Trend"
            grid: { x: 8, y: 4, w: 4, h: 3 }
            config:
              queryId: sensor-readings
              categoryField: name
              valueFields: [temperature]

Order Tracking Dashboard

reactions:
  - kind: dashboard
    id: orders-dash
    queries: [pending-orders, order-stats]
    port: 3001
    predefinedDashboards:
      - id: order-tracking
        title: "Order Tracking"
        grid:
          columns: 12
          rowHeight: 80
        widgets:
          - id: orders-table
            widgetType: table
            title: "Pending Orders"
            grid: { x: 0, y: 0, w: 8, h: 5 }
            config:
              queryId: pending-orders
              columns: [id, customer_name, total, status, created_at]
          - id: order-total-kpi
            widgetType: kpi
            title: "Total Value"
            grid: { x: 8, y: 0, w: 4, h: 2 }
            config:
              queryId: pending-orders
              valueField: total
              aggregation: sum
              label: "Pending $"
          - id: order-count-kpi
            widgetType: kpi
            title: "Order Count"
            grid: { x: 8, y: 2, w: 4, h: 2 }
            config:
              queryId: pending-orders
              valueField: id
              aggregation: count
              label: "Orders"
          - id: status-pie
            widgetType: pie_chart
            title: "By Status"
            grid: { x: 8, y: 4, w: 4, h: 3 }
            config:
              queryId: order-stats
              nameField: status
              valueField: count

Complete Example

host: 0.0.0.0
port: 8080
logLevel: info

stateStore:
  kind: redb
  path: ./data/state.redb

sources:
  - kind: postgres
    id: sensors-db
    host: ${DB_HOST}
    port: ${DB_PORT:-5432}
    database: ${DB_NAME}
    user: ${DB_USER}
    password: ${DB_PASSWORD}
    tables:
      - public.sensors
      - public.alerts

queries:
  - id: all-sensors
    query: |
      MATCH (s:sensors)
      RETURN s.id, s.name, s.temperature, s.humidity, s.last_seen
    sources:
      - sourceId: sensors-db

  - id: high-temp-alerts
    query: |
      MATCH (s:sensors)
      WHERE s.temperature > 80
      RETURN s.id, s.name, s.temperature
    sources:
      - sourceId: sensors-db

reactions:
  - kind: dashboard
    id: sensor-dashboard
    queries: [all-sensors, high-temp-alerts]
    port: 3000
    heartbeatIntervalMs: 15000
    priorityQueueCapacity: 10000
    predefinedDashboards:
      - id: sensor-overview
        title: "Sensor Overview"
        grid:
          columns: 12
          rowHeight: 80
        widgets:
          - id: all-sensors-table
            widgetType: table
            title: "All Sensors"
            grid: { x: 0, y: 0, w: 12, h: 4 }
            config:
              queryId: all-sensors
              columns: [name, temperature, humidity, last_seen]
          - id: avg-temp
            widgetType: gauge
            title: "Average Temperature"
            grid: { x: 0, y: 4, w: 4, h: 3 }
            config:
              queryId: all-sensors
              valueField: temperature
              min: 0
              max: 120
              aggregation: avg
          - id: alert-kpi
            widgetType: kpi
            title: "High Temp Alerts"
            grid: { x: 4, y: 4, w: 4, h: 3 }
            config:
              queryId: high-temp-alerts
              valueField: id
              aggregation: count
              label: "Alerts"
          - id: summary-text
            widgetType: text
            title: "Summary"
            grid: { x: 8, y: 4, w: 4, h: 3 }
            config:
              queryId: all-sensors
              template: |
                ## {{count}} sensors reporting

                Average temp: {{format (avg "temperature") "compact"}}°F

Docker Configuration

Map the dashboard port when running in Docker:

# docker-compose.yml
services:
  drasi-server:
    image: ghcr.io/drasi-project/drasi-server:latest
    ports:
      - "8080:8080"   # REST API
      - "3000:3000"   # Dashboard UI

Limitations

  • No built-in authentication (single-user assumption in v1)
  • After a WebSocket reconnect, clients must rebuild their state from a fresh snapshot — there is no server-side replay or backfill of missed events
  • Map widget uses scatter coordinates unless ECharts geo map data is registered

Documentation resources

Dashboard Reaction README

Widget types, API, WebSocket protocol, and integration tests
